First Generation Core Unit of Solid-insulated Switchgear

Product NO.: GSVR-12

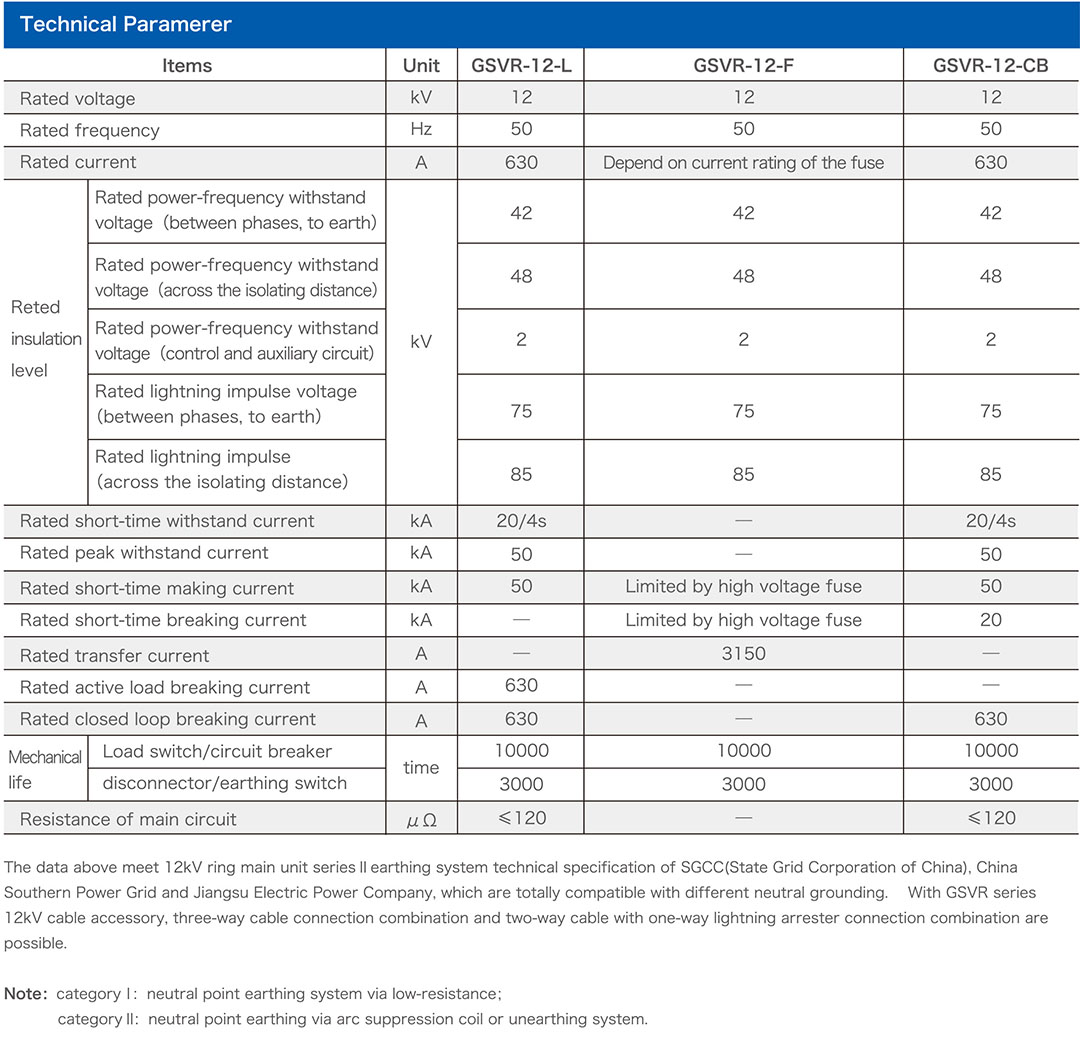

Specification: 12kV-630A
Altitude: Lower than 1500 mete r; Higher than 1500 meter

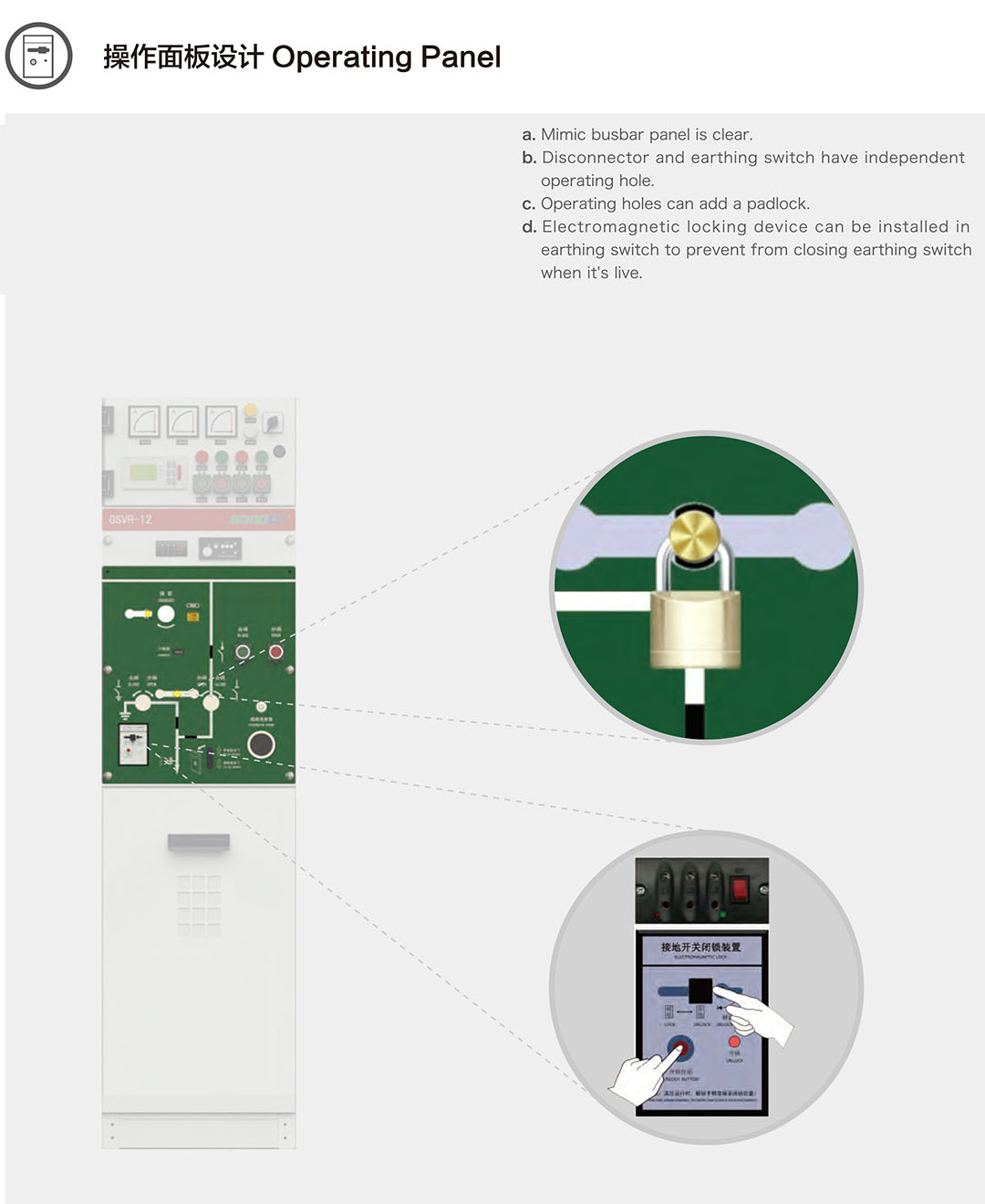

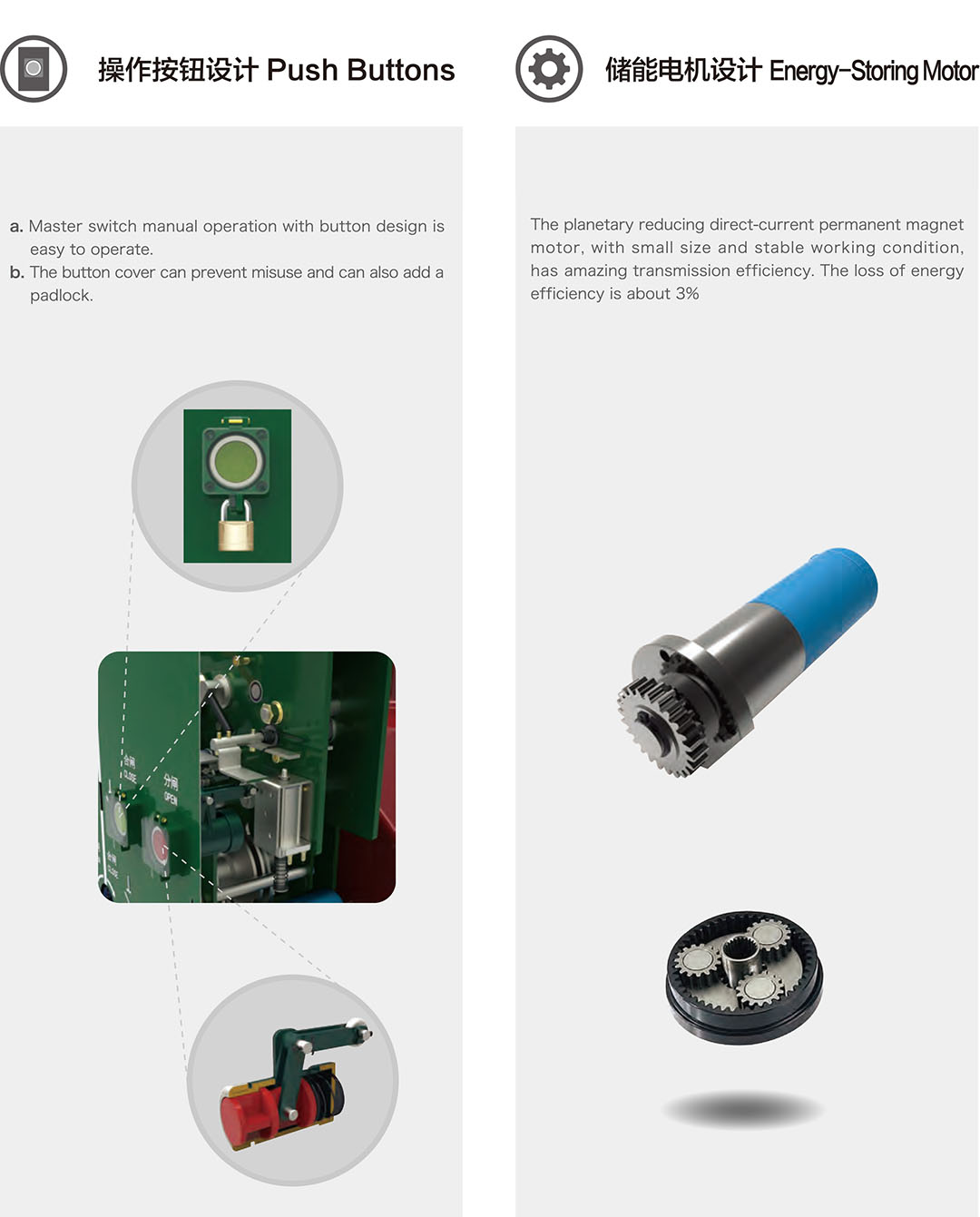

Operation: manual ; motor
Rated short circuit breaking current:20kA ; 25kA
Including the earthing switch: Yes ; No
Operation Voltage: 24V ; 48V ;110V ; 220V

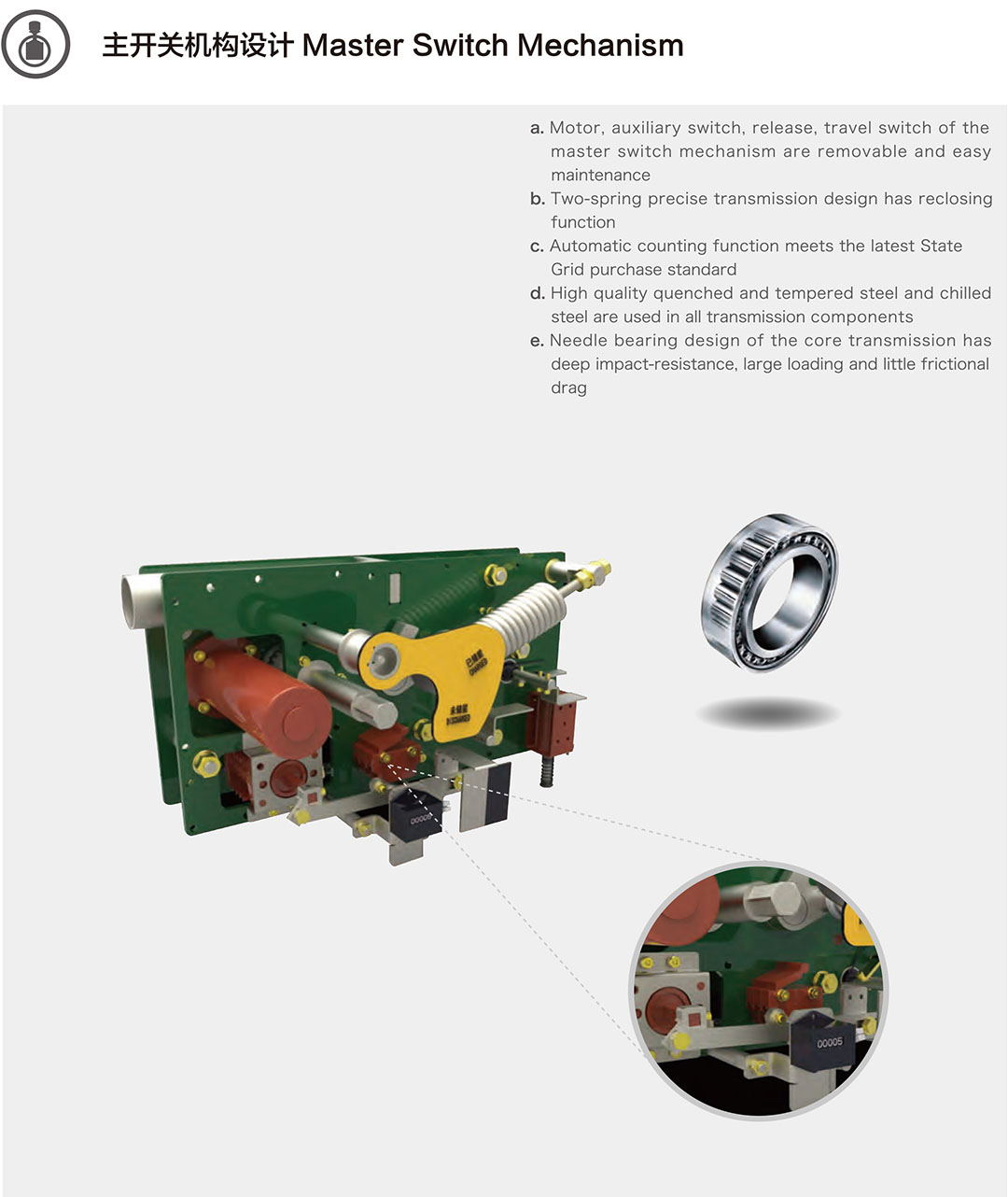

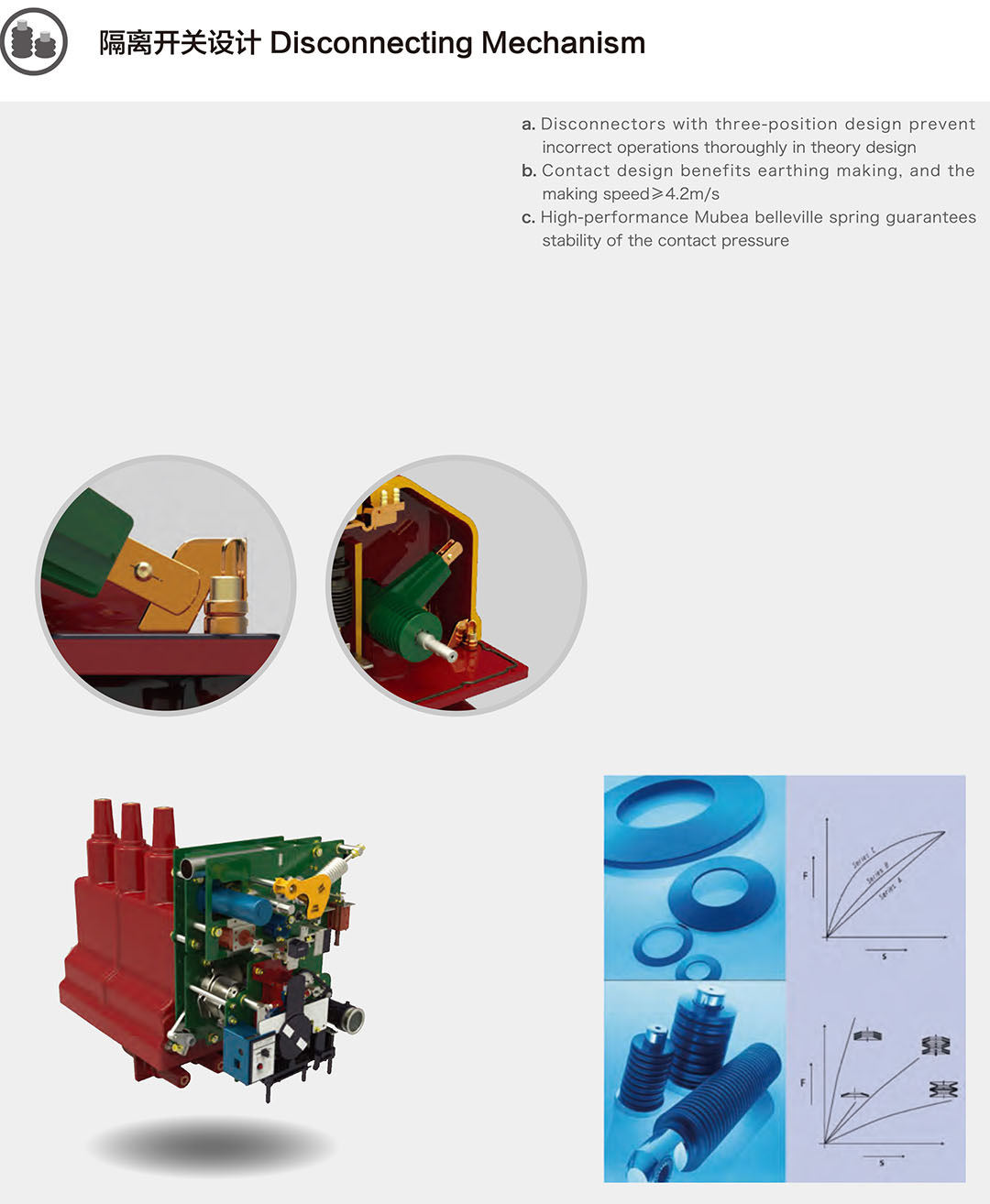

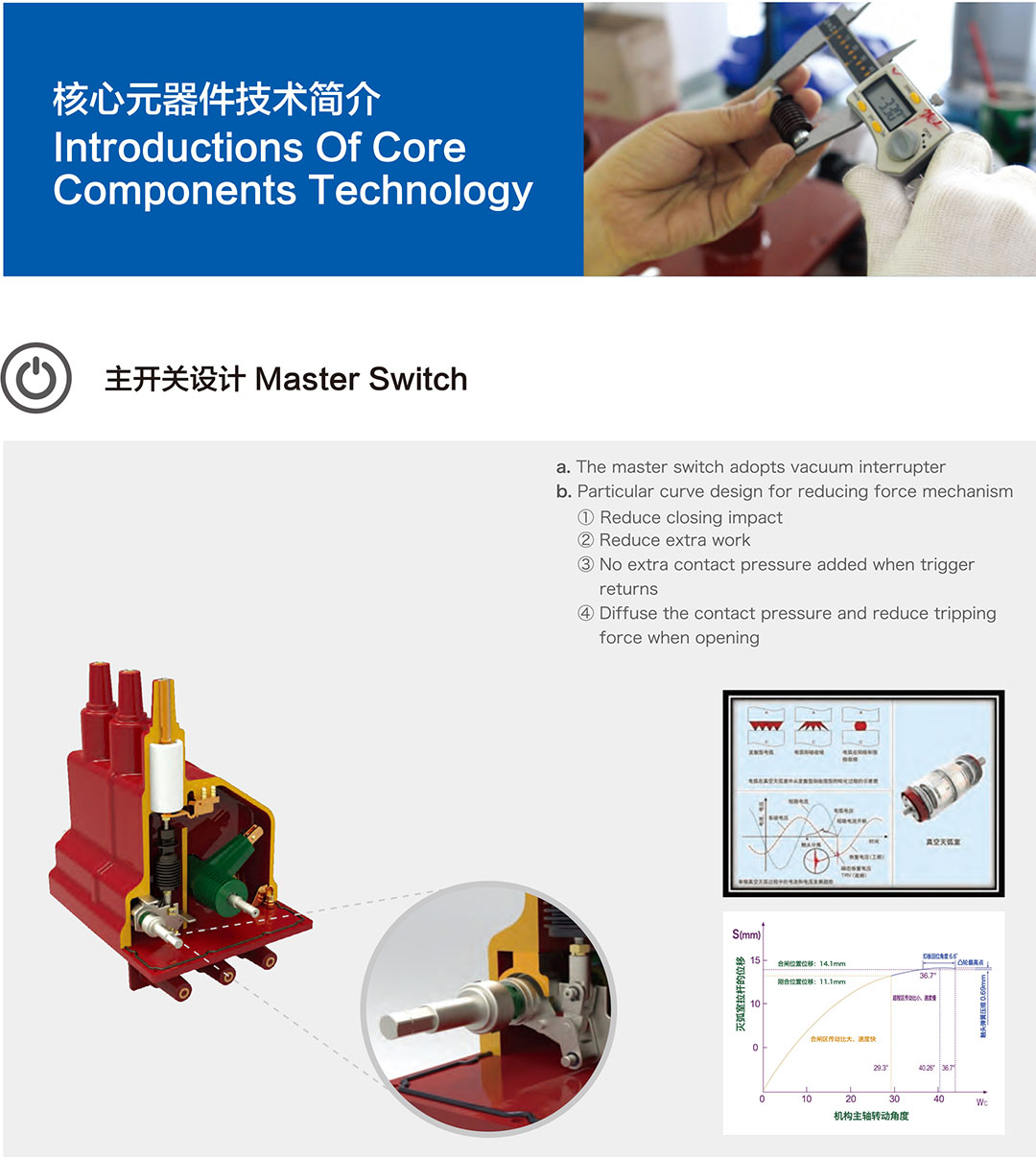

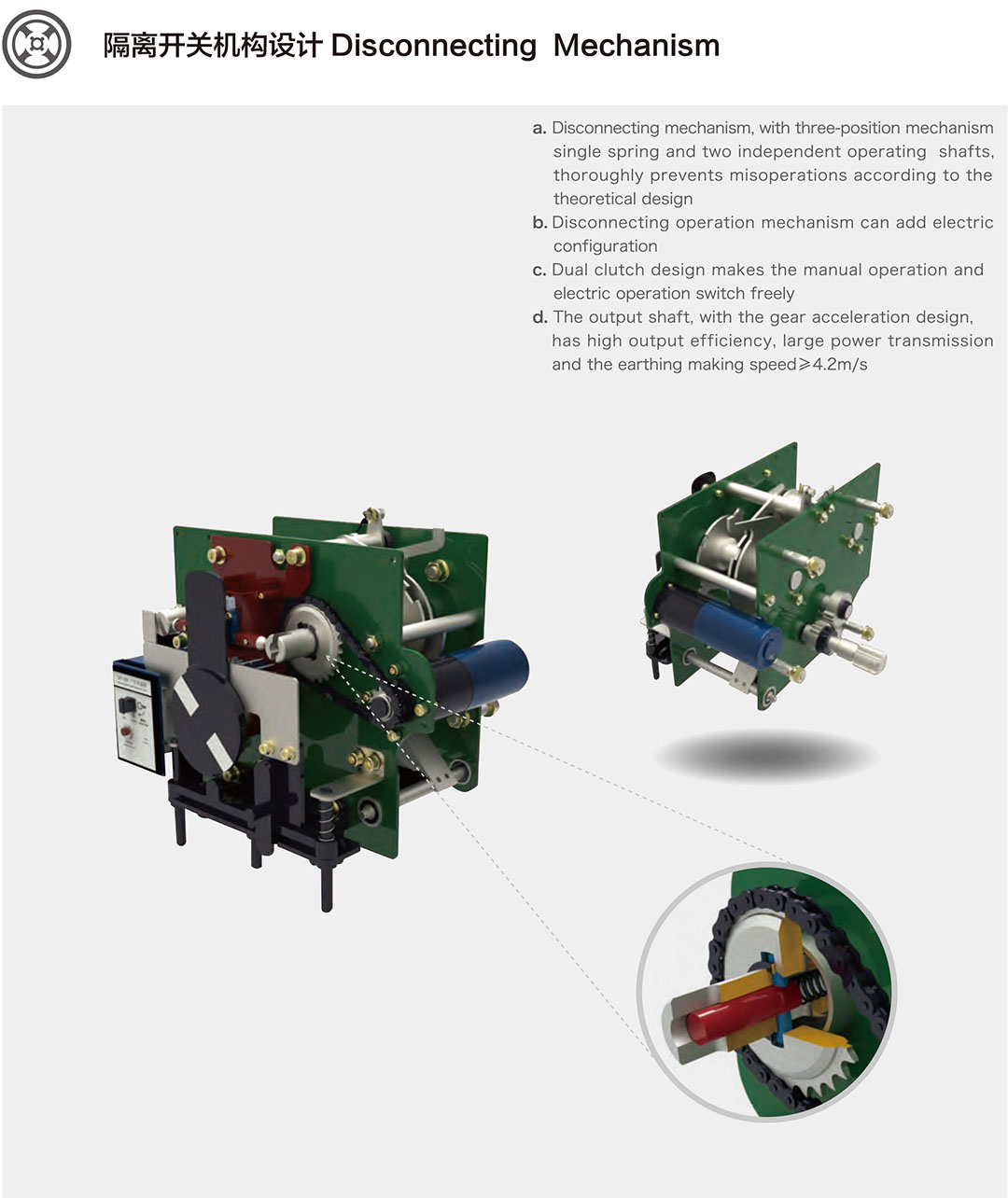

Solution: vacuum circuit breaker/load switch ; disconnecting switch
