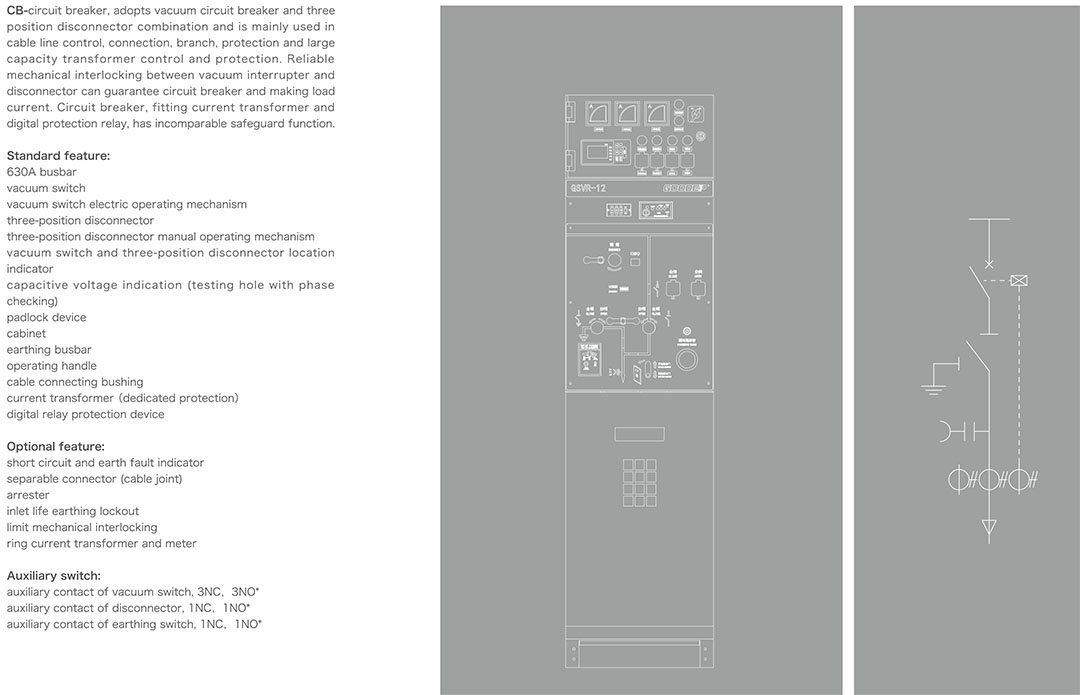

Solid-insulated Ring Main Unit

Product NO.: GSVR-12
Specification: 12kV-630A
Core unit: First generation; Second generation
Altitude: Lower than 1500 meter ; Higher than 1500 meter
Operation: manual ; motor
Rated short circuit breaking current:20kA ; 25kA
Including the earthing switch: Yes ; No
Operation Voltage: 24V ; 48V ; 220V
Solution: vacuum circuit breaker/load switch ; disconnecting switch
