Safe Gas Ring Main Unit

Product NO.: GDSGR-12

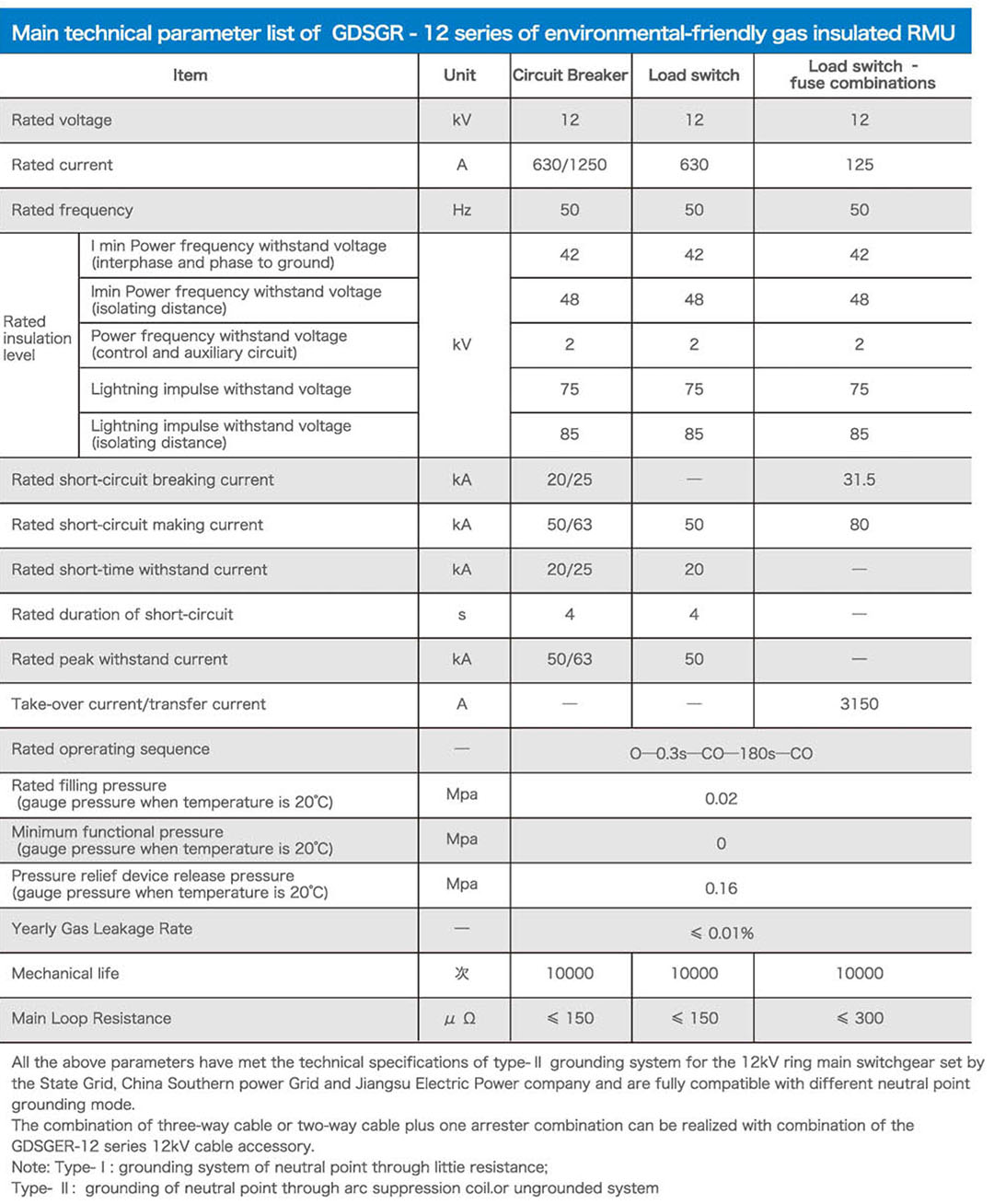

Specification: 12kV-630A
Altitude: Lower than 1500 mete r; Higher than 1500 meter
Operation: manual ; motor
Connection way between the RMU: Top ; Lateral
Including the earthing switch: Yes ; No
Operation Voltage: 24V ; 48V ; 220V

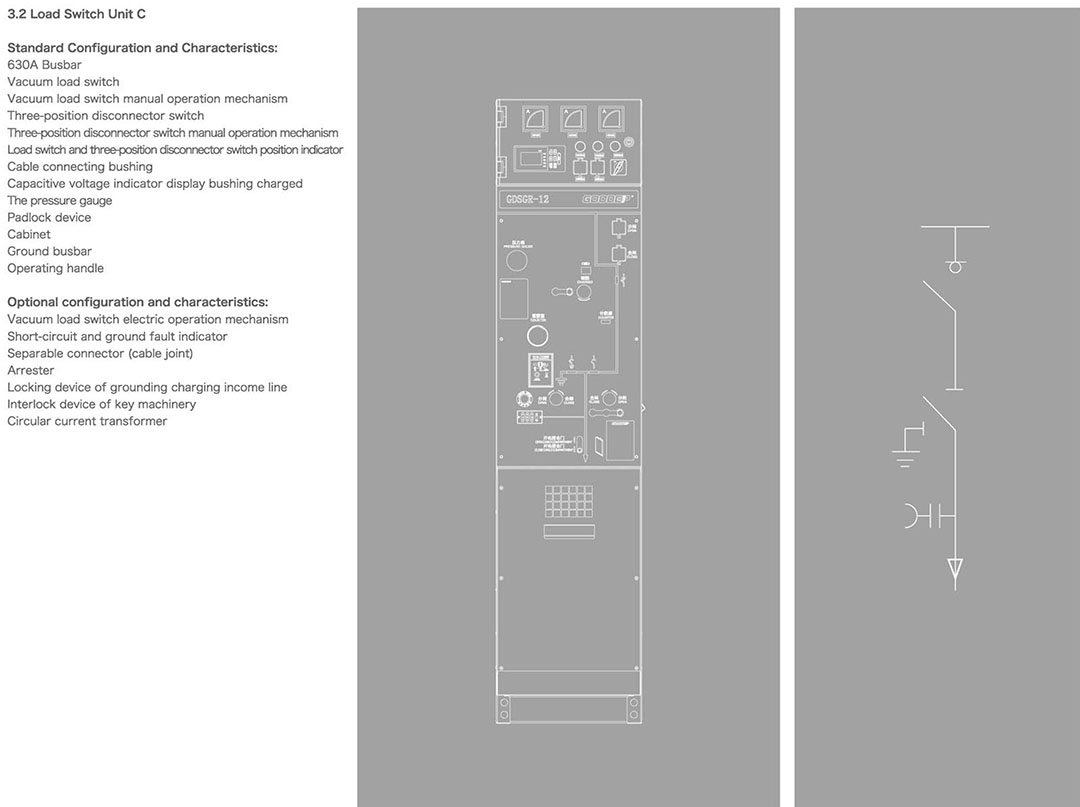

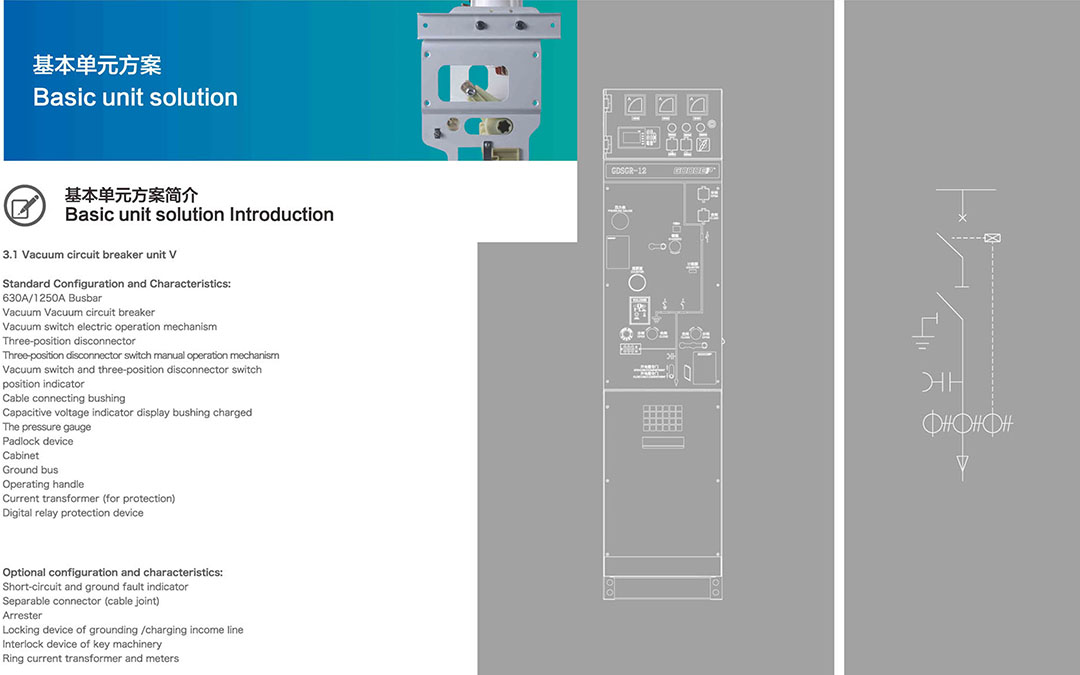

Solution: vacuum circuit breaker/load switch ; disconnecting switch
