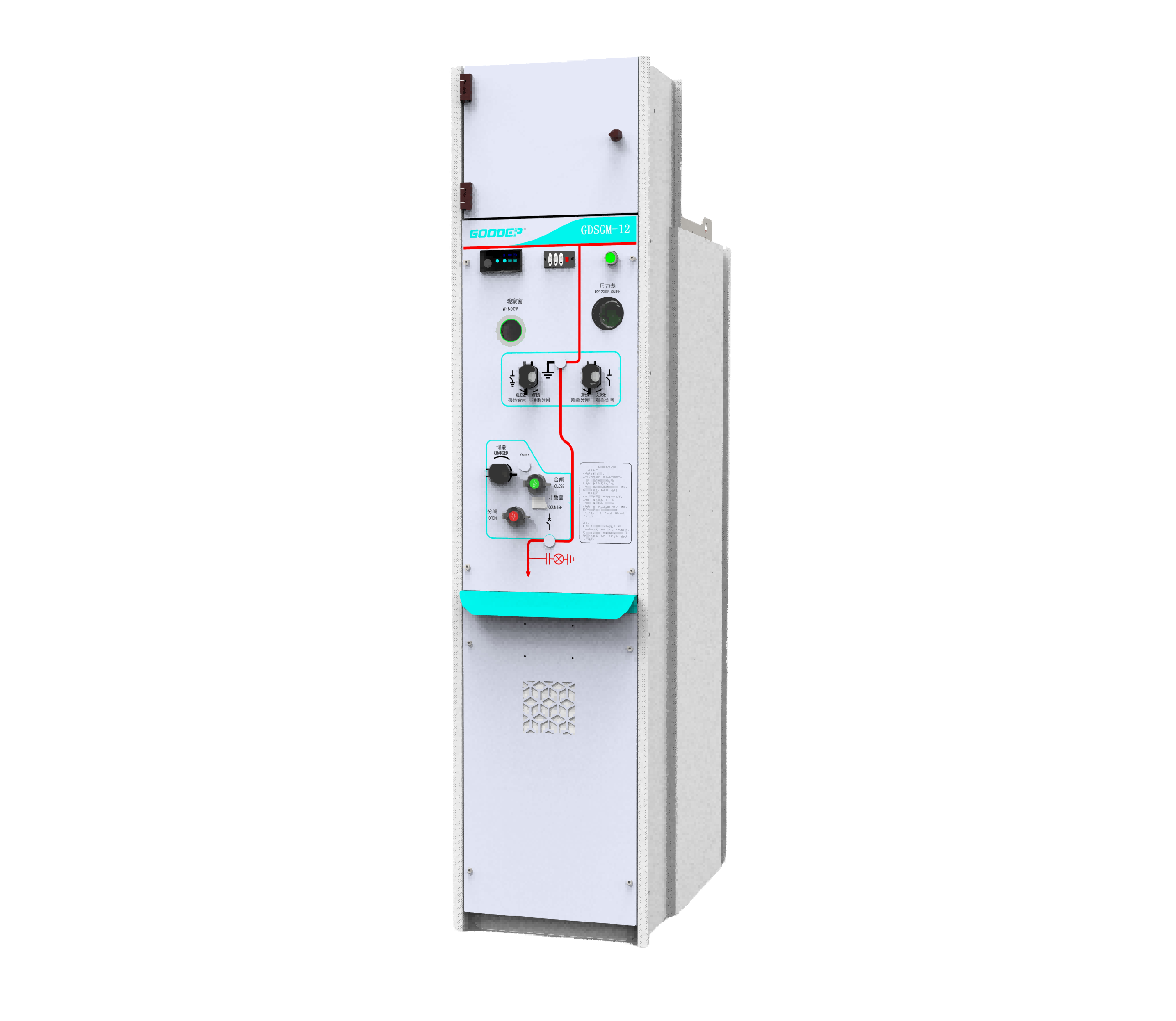

Dry Air lsulated Switch

Product Model: GDSGR/M-12

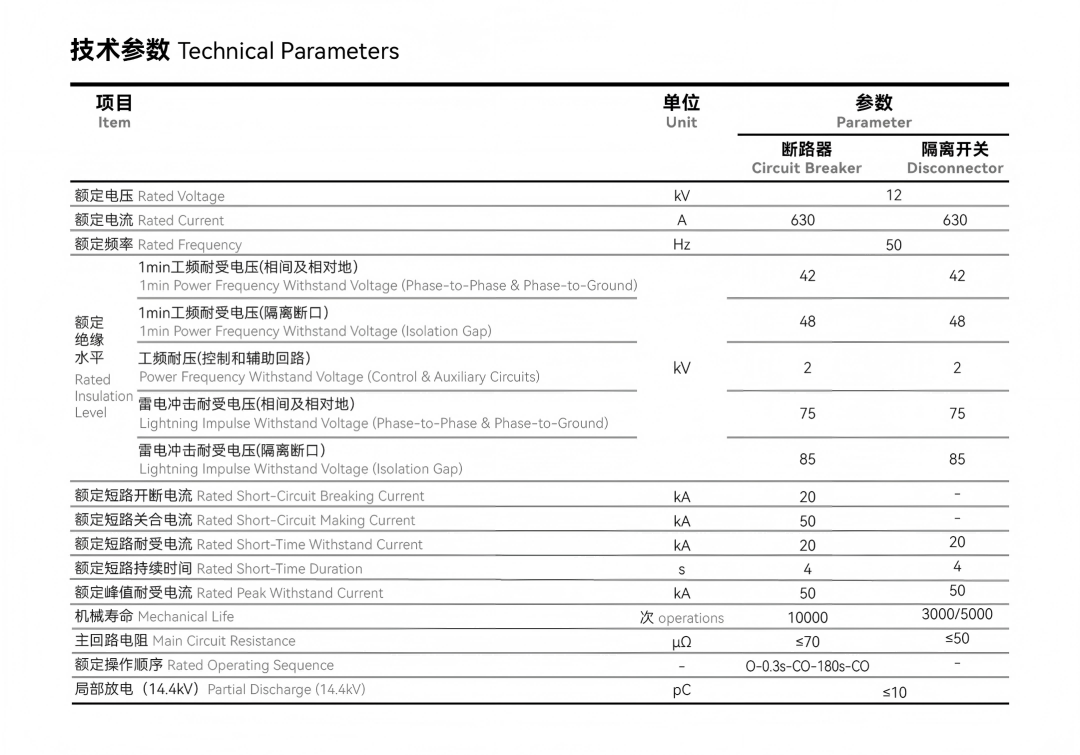

Rated Specification: 12 kV – 630 A
Altitude: ≤ 1000 m (higher-altitude version available on request)

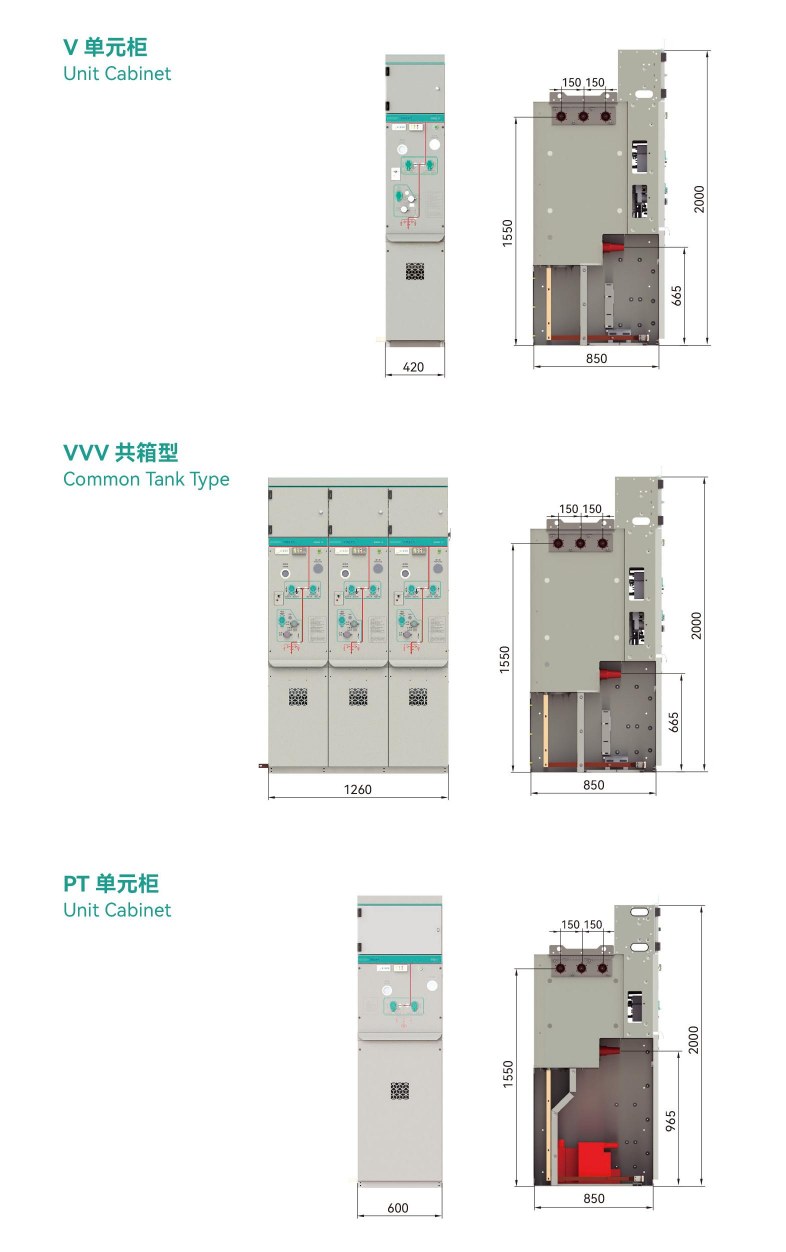

Panel-Extension Options: Side extension / Top extension
Operation Mode: Manual or Electric
Integral Disconnector: With or Without
Control Voltage: 24 V, 48 V, 220 V (110 V available on request)

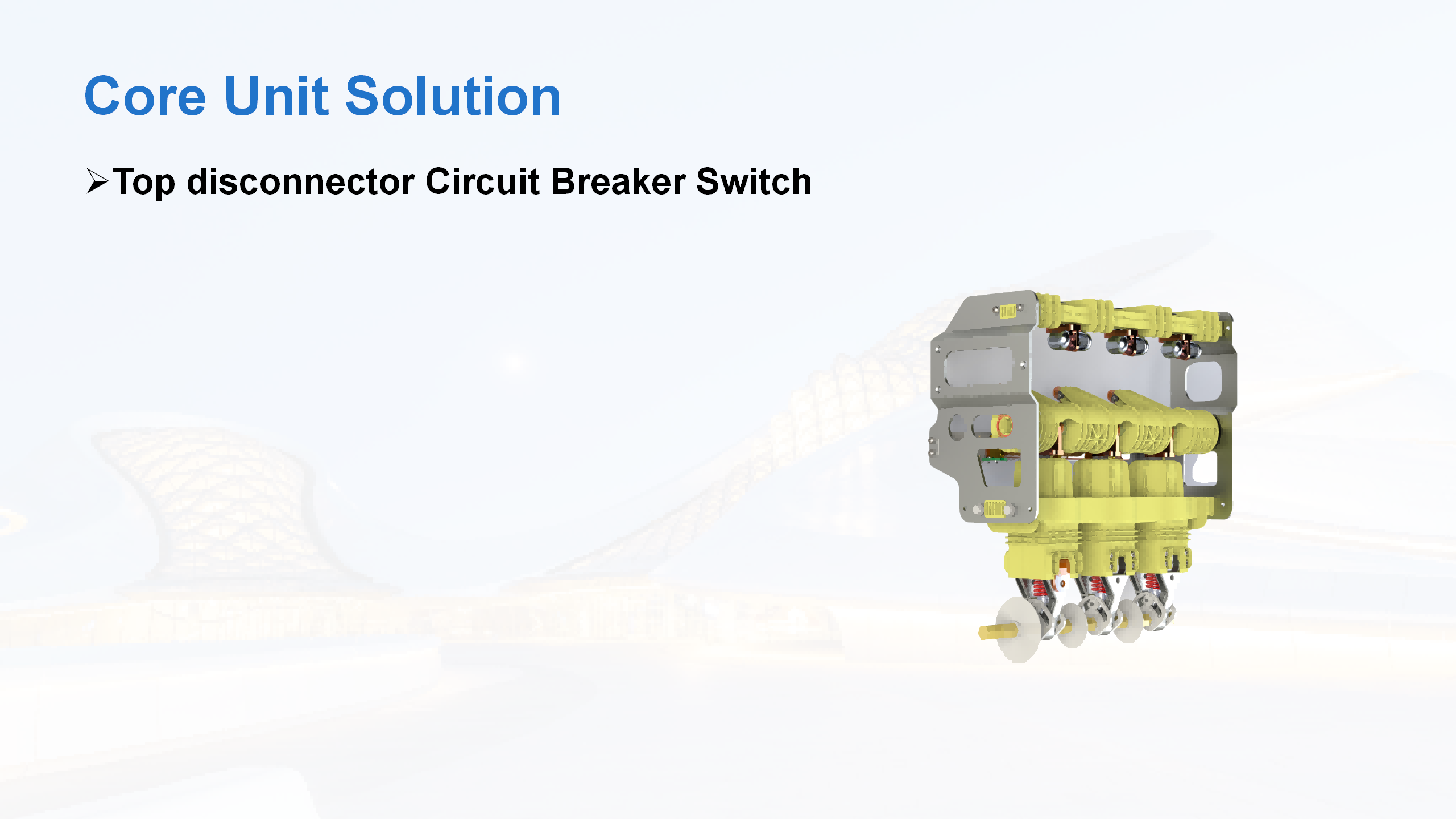

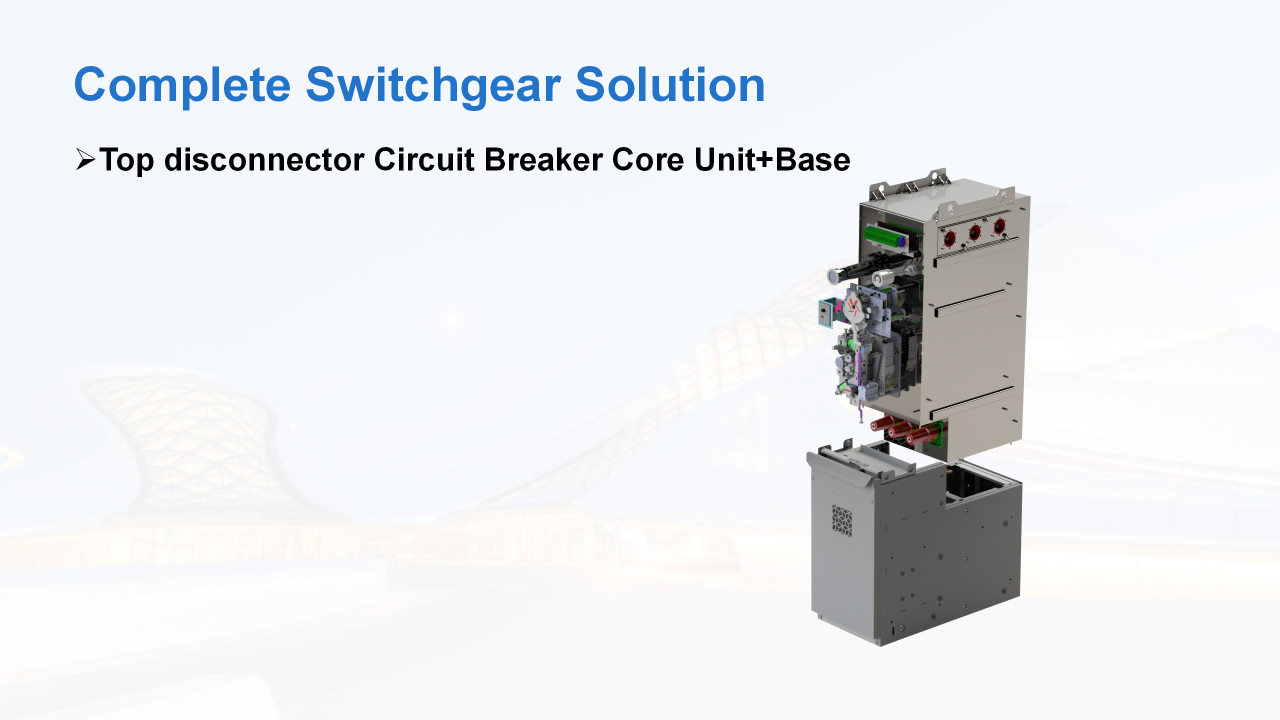

Standard Configuration: Vacuum circuit-breaker , Three-position disconnector / earthing switch
