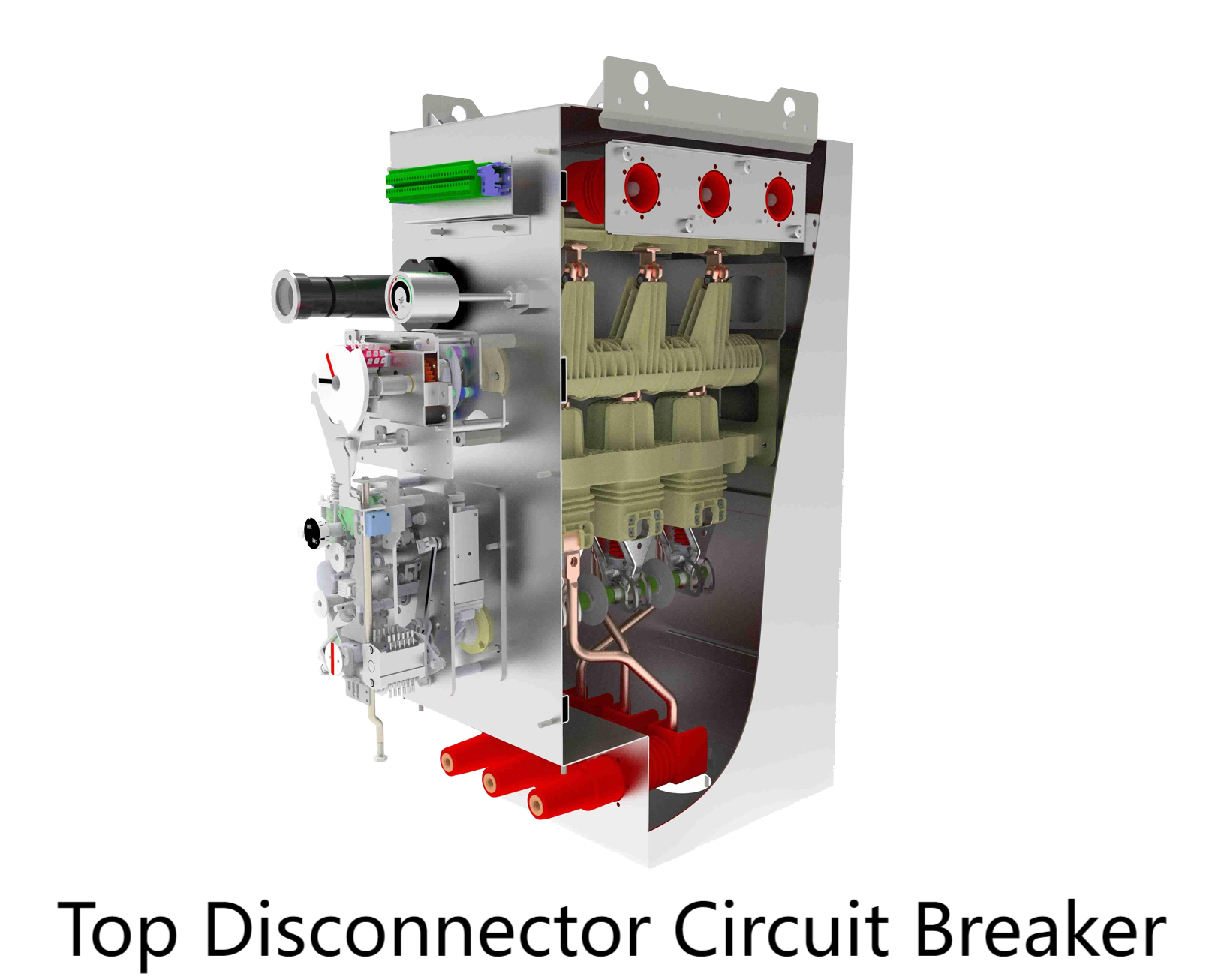

12kV Dry Air Switch

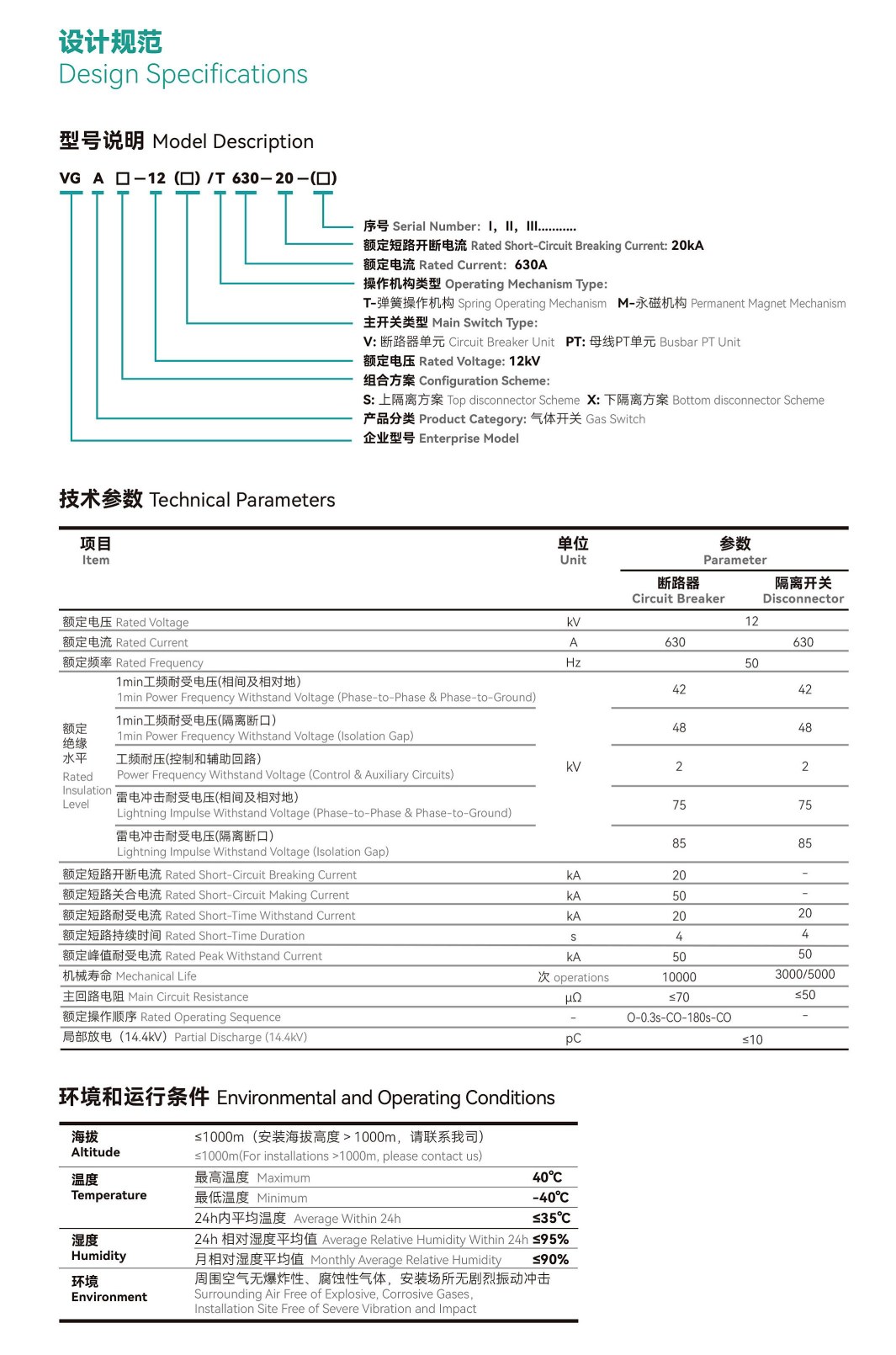

Product Model: VGAS-12(V)
Rated Spec: 12 kV – 630 A / 20 kA
Altitude: ≤ 1000 m (higher on request)
Panel Extension: Side / Top
Operation: Manual or Electric
Earthing Switch: With / Without
Control Voltage: 24 V / 48 V / 110 V / 220 V
Configuration: Vacuum circuit-breaker， 3-position disconnector (isolating/earthing)
