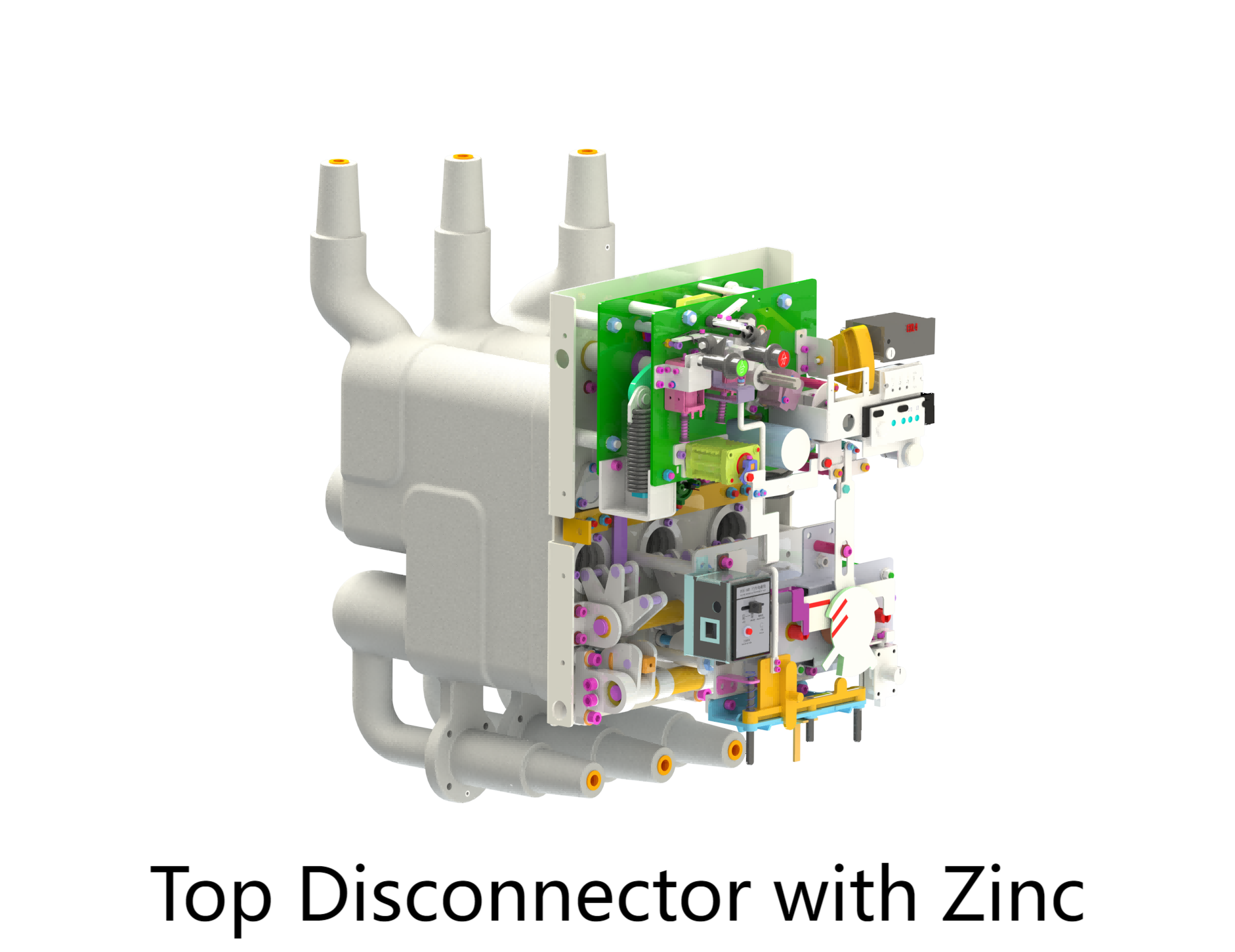

12kV Solid Insulation Switch

Product Model: GSVM-12
Rated Spec: 12 kV – 630 A / 20 kA
Altitude: ≤ 2000 m
Panel Extension: Top only
Operation: Manual or Electric
Earthing Switch: With / Without
Control Voltage: 24 V / 48 V / 110 V / 220 V
Configuration: Vacuum circuit-breaker , three-position disconnector
